Special Trees

The primary goal of this lecture is to understand these special trees via pictures and algorithms (which modify pictures). We will examine some methods, actually implemented in Java, but that is not the focus of this lecture: the concepts are more important than the code.

• Ordering Property (Min-Heap): the value stored at any node must be less than or equal to each of the values stored in its subtrees (for a Max-Heap, it must be greater than or equal to). By transitivity, we can easily check this property, by ensuring that each node stores a value that is less than the values stored in the roots of its subtrees).
• Structure Property: all depths but the deepest must be filled; if the deepest depth is not filled, all the values must occur as far to left as possible.

The first observation to make about heaps is that they are useless for doing binary searches. This ordering property doesn't help us: if searching for a value, we do not know whether to look in the left or right subtree, because the ordering property dictates only that larger values are in the subtrees.

But the ordering/structure property for heaps makes it very easy (quick) to add a new value and remove the smallest value. We will discuss the operation of these two algorithms next.

The following algorithm inserts a new value into a heap, ensuring that both the ordering and structure properties are invariant: if true before the insertion, they are true after the insertion. To insert a new value in a heap:

• By the structure property, the new node must be added into the tree either (a) following the right-most node at the deepest (unfilled) depth, or (b) as the left-most node at an increased depth if the tree is already perfect.
• Once the value has been placed property in the tree, by the ordering property, continually compare its value to the value in its parent: flip them when they are out of order; and compare this value to the value of its new parent; stop when the added value is flipped into the root or it is bigger than its parent.

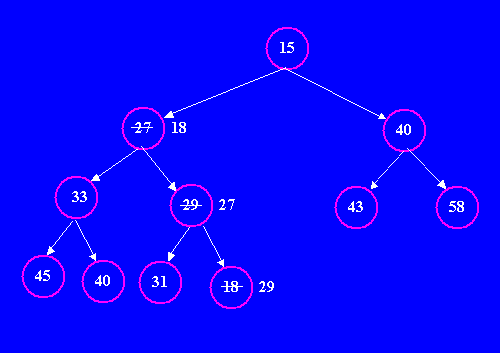

Notice that both the ordering property and the structure property remain satisfied after performing the insertion (with the new value, 18, percolating almost to the root of the tree, but not quite). In fact, if we had inserted 10, it would have percolated upwards all the way to the root of the tree (because it would be the smallest value in the entire heap). To build a heap with N values, we would perform this insertion operation N times, starting with an empty tree.

Practice inserting a few more values until you get the general idea of the algorithm

Note that the complexity class of inserting a value is truly O(Log₂N), because by the structure property, heaps always store prefectly balanced trees (their height is always the log of their size). And, the number of percolations performed is at most the height of the tree.

Next, we will examine an algorithm for removing the minimum value from a Min-Heap, ensuring that both the ordering and structure properties are invariant: if true before the removal, they are true after the removal. To remove the minimum values in a heap:

• By the ordering property, the minimum value is at the root of the heap (remove this value from the root node, but leave the root node in place).
• By the structure property, the node that must be deleted from the tree is the right-most node at the deepest depth; delete this node, but first put its value in the root node.
• By the ordering property, continually compare this value to the values of its children: if any child is smaller, swap the value with its smallest child, and repeat this process; stop when the values is smaller than both its children.

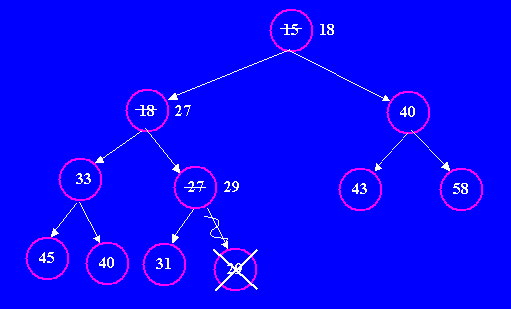

See the nodes where the values 18, 27 and 29 have ultimately moved. Notice that both the ordering property and the structure property remain satisfied after performing the removal.

Practice removing a few more values until you get the general idea of the algorithm

Note that the complexity class of removing the minimum value is truly O(Log₂N), because by the structure property, heaps always store prefectly balanced trees (their height is always the log of their size). And, the number of percolations performed is at most the height of the tree.

This means that the complexity class of enqueuing N values and then dequeuing N values (the standard way to measure the complexity class of a collection class) is O(N Log₂N) + O(N Log₂N) = O(N Log₂N). This complexity class is much better than our previous implementations, which were O(N²) (when either enqueue or dequeue was O(1) while the other was O(N). Having each operation O(Log₂N) (worse than O(1) but better than O(N) seems to balance things out better. The logarithm function is closer than constant than to linear growth. In fact, we can sort an array in O(N Log₂N) by the equivalent of enqueuing all its values and then dequeuing them.

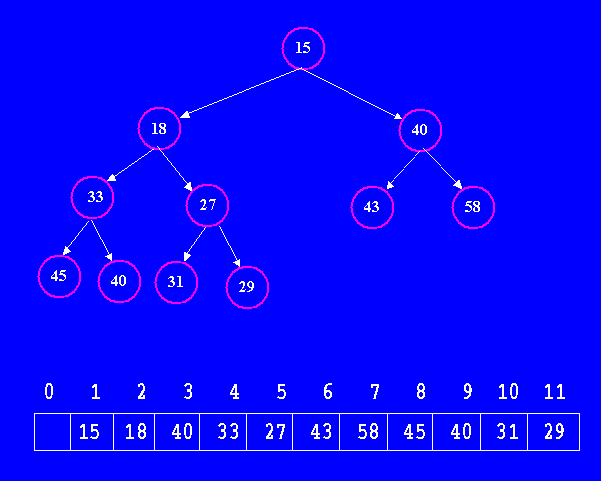

Finally, the structure property of heaps allows us to easily store them as contiguous values in arrays, without the use of explicit child/parent references: references to left/right children and parents can be calculated via the indexes. To do this, we do the following:

• Store the root of the tree at index 1 (leave index 0 unfilled).
• Store the left child of the node at index i at index 2*i.
• Store the right child of the node at index i at index 2*i+1.

Note that the parent of any child stored in index i is stored at index i/2.

The left child of the root is stored at index 2 (its left and right children are stored at indices 4 and 5 respectively); the right child of the root is stored at index 3 (its left and right children are stored at indices 6 and 7 respectively). By continuing this process, we can observe that every index is filled in and there are no collisions (multiple values stored in the same index).

Thus, we can unambiguously store any heap of N values in an array of size N+1, storing its nodes uniquely between indexes 1 and N. As the algorithms above require, we can easily find the location of the node to add (for insertion) or node to remove (deletion): index N+1 and index N respectively.

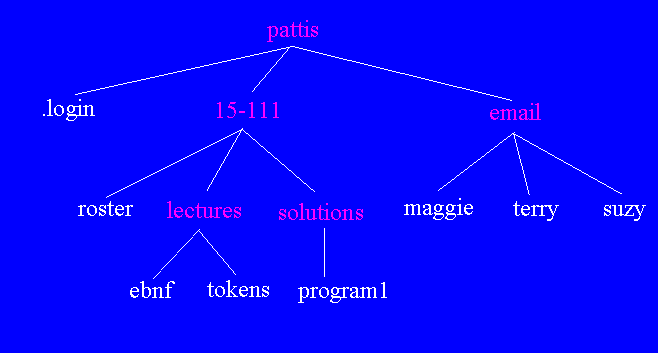

Here is an example of an N-ary tree representing a directory tree (with folder names in pink and file names in white)

  public class FolderFile {
    public FolderFile (String s)
    {name = s; children = new HashSet();}

    public String name;
    public Set    children;
  }

  public static void printNames (FolderFile ff)
  {
     System.out.println(ff.name);
     for (Iterator i = ff.children.iterator(); i.hasNext(); ) {
       FolderFile aChild = (FolderFile)i.next()
       printNames( aChild );
     }
  }

The program Directory Lister shows how we can explore directory structures in Java, using the File class from Java's standard library. In fact, Java uses arrays to list all the files available in a folder, so they are processed in a manner similar to the code above.

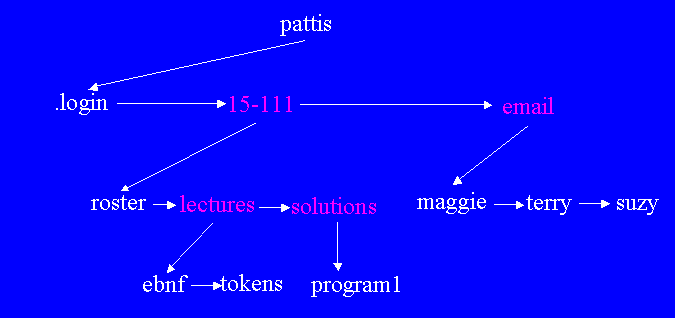

Surprisingly, we can also use a standard binary tree to store an N-ary tree, when we assign the two references different meanings. The basic idea behind N-ary trees stored as binary trees is that that each node refers to its first child and its next sibling. Thus, as with regular binary trees, we still define such trees using two recursive references; but their meanings, and how such trees are processed are very different. The general form for defining N-ary tree nodes is

  public class NTN {
    public int value;
    public NTN  firstChild,sibling;

    public NTN (int i, TN fc, TN s)
    {value = i; firstChild = f; sibling = s}
  }

For actually defining directory data, we will define the following three classes in a small inheritance hierarchy. DirectoryEntry is the superclass for both File and Folder. It supplies code for a variety of methods, including getFirstChild (which always returns null but is overridden by Directory) and getSize (which always returns 0 but is overridden by File). All directory entries have siblings, but only Folders have children.

  public class DirectoryEntry {
    public DirectoryEntry (String name)
    {this.name = name; next = null;}

    public DirectoryEntry getFirstChild()
    {return null;}

    public DirectoryEntry getNextSibling()
    {return next;}

    public void addSibling(DirectoryEntry de)
    {
       DirectoryEntry c = this;
       for (; c.next != null; c=c.next)
         {}
       c.next = de;
    }

    public int getSize()
    {return 0;}

    private String         name;
    private DirectoryEntry next;
  }


  public class File extends DirectoryEntry {
    public File (String name, int size)
    {super(name); this.size = size;}

    public int getSize()
    {return size;}

    private int size;
  }


  public class Folder extend DirectoryEntry {
    public Folder (String name)
    {super(name); firstChild = null;}

    public DirectoryEntry getFirstChild()
    {return firstChild;}

    public void addChild(DirectoryEntry de)
    {
      if (firstChild == null)
        firstChild = de;
      else
        firstChild.addSibling(de);
     }

    private DirectoryEntry firstChild;
  }

  public static int height (DirectoryEntry de)
  {
    if (de == null)
       return -1;
    else {
      int maxChildHeight = -1;
      for (DirectoryEntry c=de.getFirstChild(); c!=null; c=c.getSibling()) {
         int childHeight = height(c);
         if (childHeight > maxChildHeight)
           maxChildHeight = childHeight;
      }
      return 1 + maxChildHeight;
    }
  }

  public static int height (DirectoryEntry de)
  {return 1 + heightHelper(de.firstChild);}

  public static int heightHelper (DirectoryEntry de)
  {
    if (de == null)
      return -1;
    else
      return Math.max( 1+heightHelper(de.firstChild),
                       heightHelper(de.getSibling) );
  }

  public static int size (DirectoryEntry de)
  {
    if (de == null)
      return 0;
    else
      return de.getSize() + sizeHelper(de.firstChild);
  }

  public static int size (DirectoryEntry de)
  {
    if (de == null)
      return 0;
    else
      return de.getSize() + sizeHelper(de.firstChild) + sizeHelper(de.getSibling);
  }

It it interesting to observe that the Reverse Polish Notation (RPN) translation of any expression can be computed by a postorder traversal of its tree (printing the value, operator or constant, of each node).

Note that there are no parentheses in the tree; the operator precedence (including parentheses which override precedence) can alter the structure of the tree, even though they don't appear in the tree proper. Also note that by modeling an expression as a tree, we can answer certain questions about the expression by computing information on the model. For a computer with a single arithmetic unit, the amount of time it will take to evaluate an expression is computed by the number of internal nodes. For a computer with many arithmetic units, the amount of time it will take to evaluate an expression is computed by the height of the tree (because all operators at the same depth bacn be computed at the same time by the multiple arithmetic units).

We can use inheritance to model expressions easily. The classes definining expression trees (both abstract and concrete) form the following inheritance hierarchy.

  public abstract class ExpressionTree {
    public abstract int    evaluate();
    public abstract String postfix();

    //This is called a "Factory" Method. It constructs an expression tree
    public static ExpressionTree makeET
      (String op, ExpressionTree left, ExpressionTree right)
    {
      if (op.equals("+"))
        return new Add(left,right);
      else if (op.equals("-"))
        return new Subtract(left,right);
      else if (op.equals("*"))
        return new Multiply(left,right);
      else if (op.equals("/"))
        return new Divide(left,right);
      else if (op.equals("^"))
        return new Power(left,right);
      else if (op.equals("~"))
        return new Negate(right);
      else
        throw new IllegalArgumentException
                    ("ExpressionTree.makeET: illegal operators = " + op);
    }
  }

  public class Constant extends ExpressionTree {
    public Constant (int value)
    {this.value = value;}

    public int evaluate()
    {return value;}

    public String postfix()
    {return ""+value+" ";}

    private int value;
  }

  public abstract class Operator extends ExpressionTree {
    public abstract String getOpSymbol();
  }

  public abstract class BinaryOperator extends Operator {
    public BinaryOperator (ExpressionTree left, ExpressionTree right)
    {
      this.left  = left;
      this.right = right;
    }

    public ExpressionTree getLeft()
    {return left;}

    public ExpressionTree getRight()
    {return right;}

    public String postfix()
    {return left.postfix() + right.postfix() + getOpSymbol() + " ";}

    private ExpressionTree left,right;
  }

  public class Multiply extends BinaryOperator {
    public Multiply (ExpressionTree left, ExpressionTree right)
    {super(left,right);}

    public int evaluate()
    {return getLeft().evaluate() * getRight().evaluate();}

    public String getOpSymbol()
    {return "*";}
  }

Download Expression Trees for the entire specification of these classes, and a driver program that uses a StringTokenizer and Stack to translate infix expressions (using operator precedence and parentheses) into expression trees, and then print their postfix form and evaluate the expression tree.

Could augment this program by using a Map to store associations between variables and values, so that we could add a Variable class to the heirarchy above. Then, we could add the = operator, and evaluate expressios in the context of the variable map; at this point we have built an interpreter for a simple calculator.

If you get stumped on any problem, go back and read the relevant part of the lecture. If you still have questions, please get help from the Instructor, a TA, or any other student.

1. None Yet.
