Assignment #7: Demonstrate familiarity with 3D modeling for 3D printing

• This assignment is to be done individually.
• Create a 3D model of one of the following:
  • An anteater
  • A UCI themed chess piece
  • A cartoon character
• Your model should:
  • be one object, not a collection of objects
  • demonstrate use of constructive solid geometry
  • demonstrate use of extrusion, either linearly or as spin/screw modifiers.
  • should be composed of 5 or more primitive objects
• I expect you to completely create this from scratch. Downloading a model from the internet and then modifying it is not acceptable.
• You will turn in the ".blend" data file associated with your model. You can turn in your ".blend" file here: https://eee.uci.edu/toolbox/dropbox/index.php?op=openfolder&folder=309446
• For grading we are looking to see that you met the requirements listed above and have demonstrated proficiency in creating a very simple 3D model.
• The top models will be printed out on the LUCI printer and given to the owners
• In that case the model will be scaled to fit into a 2-in cube.

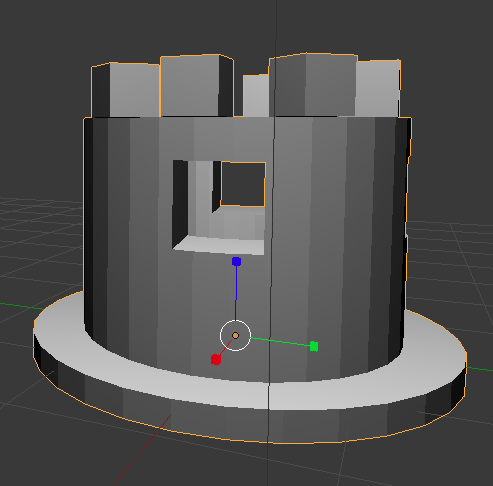

Here is an example of a model at the level of complexity that we are anticipating. Notice that there is CSG in the windows, multiple primitives (such as two cylinders) combined into one object, and a spin modifier applied to the cubes on the top.
